Counter Unmanned Aircraft Systems

In response to the evolving threat posed by hostile drones to critical infrastructure and national security, ROLUS and ADSL has jointly developed a cutting-edge, multi-layered Anti-Drone Solutions engineered for rapid detection, precise tracking, and reliable neutralization of unauthorized aerial threats. This indigenous solution integrates advanced radar technology, RF jamming, electro-optical/infrared (EO/IR) surveillance, interceptor drones, and hard-kill mechanisms—offering a comprehensive protective shield for strategic assets, border area and high-value zone.

Man-Portable Anti-Drone System (MPADS)

The MPADS system is combination of two sub-systems:

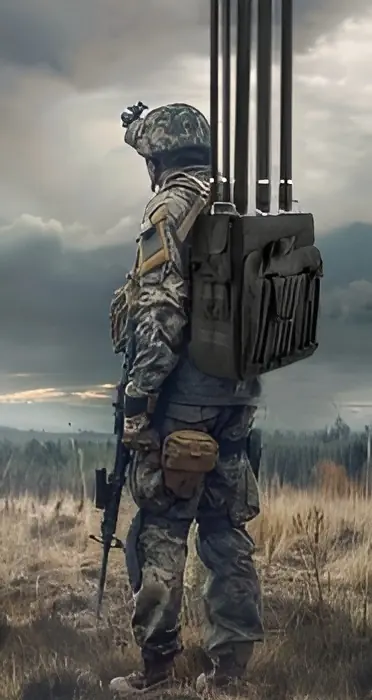

  • Backpack-Mounted Drone Detector Unit
  • Hand-Held Directional Jammer Unit

System Overview

  • Lightweight, modular, and soldier-friendly solution.
  • The system comprises a backpack-mounted RF/EO/IR detector and a hand-held directional jammer
  • Designed to detect, track, and neutralize hostile drones in tactical environments.
  • Low signature, rapid deployment, and reliable performance in diverse terrains and weather
  • Ideal for jungle warfare, urban combat, and high-risk operations.

Mission Suitability

  • Counter-insurgency operations
  • Jungle and urban patrolling
  • Convoy and base protection
  • Tactical ambush support
  • Terrorist hideout raids

Backpack-Mounted Drone Detector Unit

Key features:
  • 360° RF Detection with signal classification (2.4 GHz, 5.8 GHz, GNSS, custom C2 links)
  • EO/IR camera (optional) for visual confirmation and passive tracking
  • Detection range: Up to 4 km depending on terrain and drone size
  • Low SWaP (Size, Weight, and Power) with silent operation
  • Real-time alerts via audio, visual, and vibration feedback on wearable or mobile display
  • Encrypted communication with jammer unit and central command if needed

Hand-Held Directional Jammer Unit

Key features:
  • Multi-band jamming eg. GNSS, 2.4 GHz, 5.8 GHz, and custom RF bands
  • Directional high-gain antenna for precise target disruption
  • Effective jamming range up to 1.5 - 2 Kms (LoS)
  • Trigger-based operation with safety interlock and mode selector (disruption / disable)
  • Battery powered (field swappable) with >1 hours runtime.
  • Rruggedized for single-person use in combat conditions.
Man-Portable-Anti-Drone-System-(MPADS)3-v26

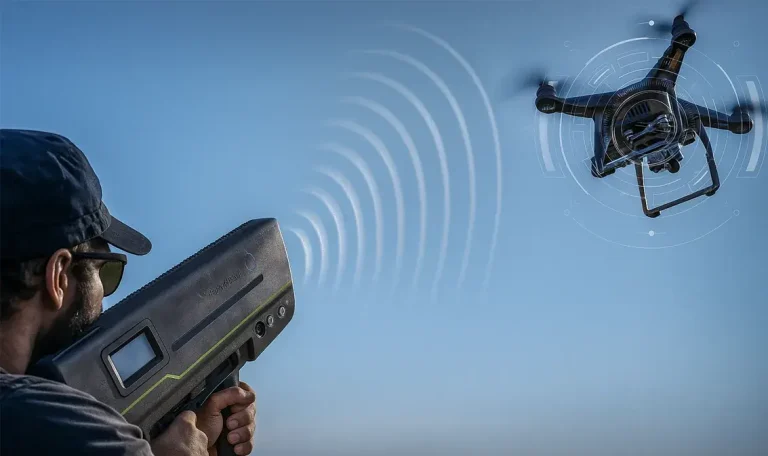

Hand held counter drone system (HCDS)

System Overview

  • Compact, portable, one man carry system suitable for field operation.
  • Quick neutralization of unauthorized or hostile drones.
  • Intercept and disable drones at short to medium ranges without physical destruction.
  • Effective solution in tactical operations, border area protection, and VIP security.

Key features:

  • Multi-Band RF Jamming with frequencies 400 MHz - 5.8 GHz.
  • Quick Deployment and becomes operational within seconds.
  • Shoulder-fired or rifle-style form factor with trigger operation.
  • Operational range of up to 1–2 km (line of sight).
  • Denies GPS/GLONASS/Galileo reception to targeted drones, causing disorientation or auto-landing.
  • Built-in diagnostic display or LED indicators for system health and battery status.
  • Weight under 6 kg for single-operator use.

Net-Catcher Anti-Drone System (NCADS)

System Overview

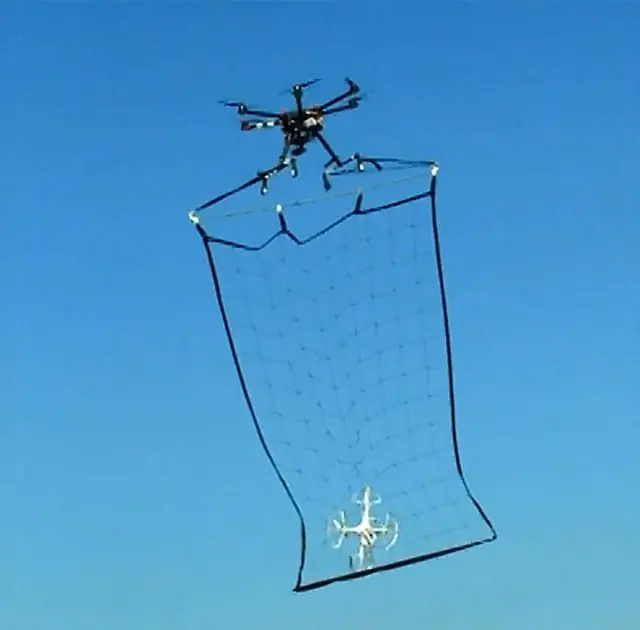

  • An advanced, drone-mounted interception solution designed to capture hostile drones intact using a net-firing mechanism.
  • Deploying a net to entangle, disable, or tow the target drone to a secure location.
  • Intercept and disable drones at visual ranges without physical destruction.
  • Allows the safe recovery of enemy UAVs for forensic investigation, data extraction, or disposal.

Key features:

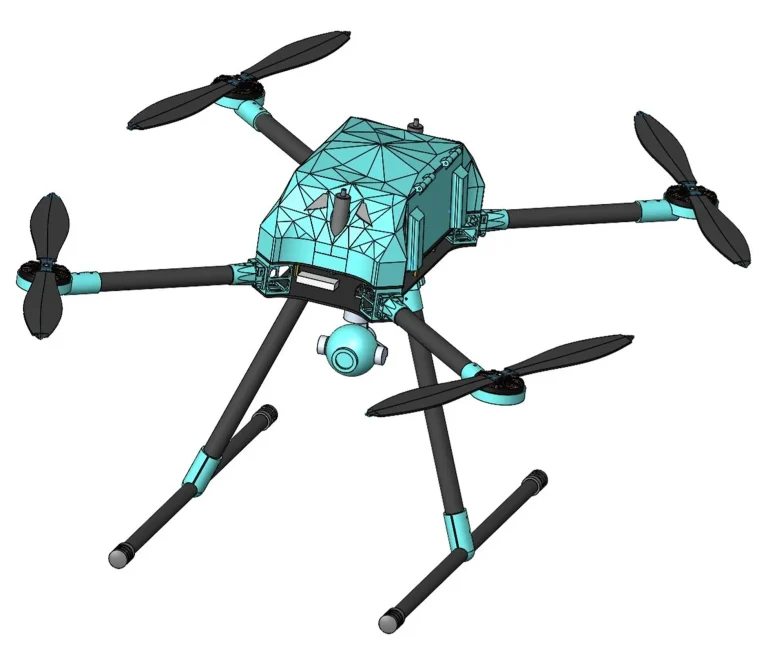

  • Multi-rotor UAV with EO/IR camera for visual target acquisition capacity and net-launcher system.
  • AI-assisted autonomous detection and target tracking.
  • Drone operational range of up to 2-3 km (line of sight).
  • Fires net to bring drone down by entangling rotors.
  • Effective range: 5–15 meters from target drone.
  • Capture-and-tow target drone to base.

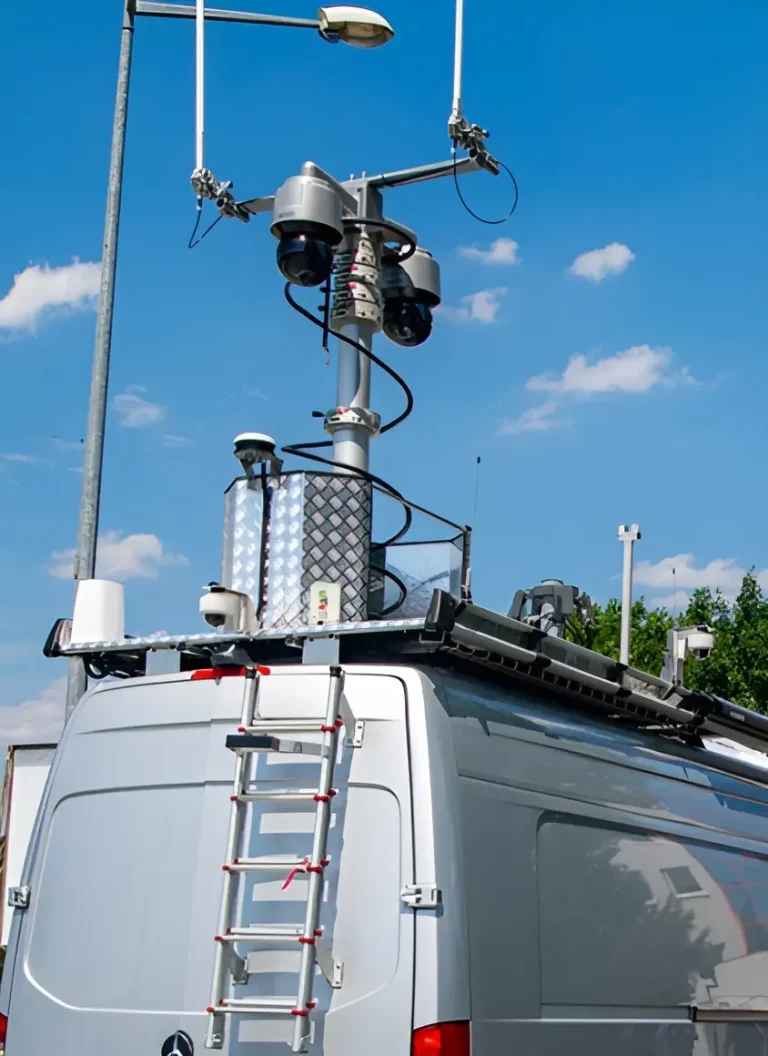

Vehicle Mounted Anti Drone System (VMADS)

System Overview

  • Cutting-edge mobile platform designed to detect, track, and neutralize unmanned aerial vehicles (UAVs) and drones.
  • The systems is integrated with radar, sight system, electronic warfare, and directed energy weapons to provide comprehensive protection against drone threats.

Key features:

  • Mobility and Rapid Deployment
  • Automatic Detection and Classification
  • Automatic Neutralisation
  • Capability to neutralise drone swarms
  • Suitable to quickly deployed at airport, field operation area and civilian populations to protect from potential drone attacks.

Infrastructure Protection Drone System (IPDS)

System Overview

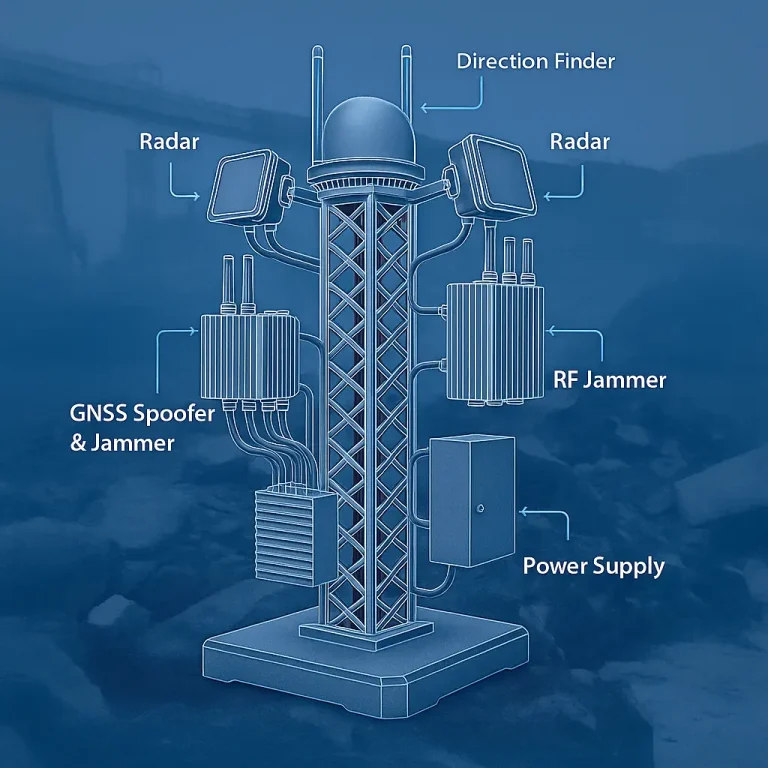

  • Integrated, multi-layered solution designed to detect, identify, track, and neutralize unauthorized drones or aerial threats near critical infrastructure
  • Autonomous aerial surveillance and rapid response solution against physical intrusion, sabotage, and aerial threats.
  • Provide 24/7 perimeter monitoring, anomaly detection, and real-time threat response.
  • Equipped with advanced sensors, AI-driven analytics, and optional deterrence modules.
  • Designed to reduces human dependency, and accelerates reaction time in the event of a security breach.

Key features:

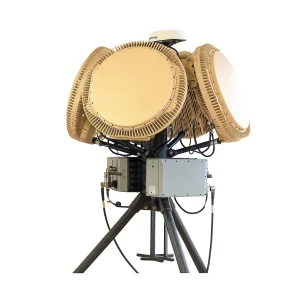

3D Surveillance Radar

  • 360° azimuth coverage
  • Detection range: up to 5–15 km (customizable)
  • Tracks multiple targets simultaneously

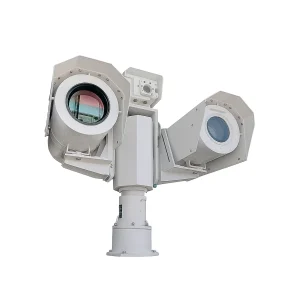

Electro-Optical/Infrared (EO/IR) Sight System

  • Visual identification and Auto tracking of drone threats.
  • Day/Night vision capability.
  • Laser range finder (optional).

RF Detection and Jamming Module

  • Detects drone communication frequencies (2.4GHz/5.8GHz)
  • Jams GNSS and RF links to disable drone control
  • Disrupts drone-to-operator communication

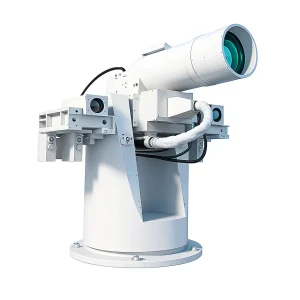

Hard Kill System

  • Neutralization of hostile drones through kinetic Disrupts
  • Directed Energy Weapon (Laser)
  • Net-Gun Launcher or kinetic kill with minimal collateral damage.
